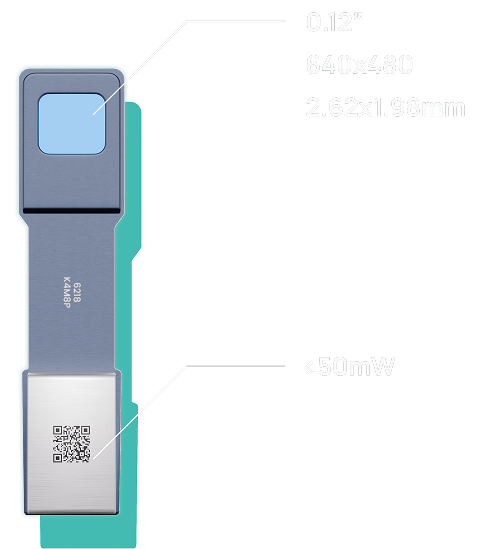

This 0.12″ display offers ultra-high brightness, compact integration, power efficient, high refresh rate, fast response, and wide color gamut.
Optimized for integration into near eye AR displays, micro projection
applications, lighting applications, and more.
| Color | Red | Green | Blue |
|---|---|---|---|
| Size | 0.12” | 0.12” | 0.12” |
| Pixel Pitch | 3.75 µm | 3.75 µm | 3.75 µm |
| Brightness | 100–200k nits | 3kk nits | 500k nits |
| Resolution | 640×480, >8k PPI | 640×480, >8k PPI | 640×480, >8k PPI |
| Refresh Rate | 00 Hz | 00 Hz | 00 Hz |
| Power | < 50 mW | < 50 mW | < 50 mW |
| Weight | 00 g | 00 g | 00 g |
| Active Area | 2.62 × 1.98 mm | 2.62 × 1.98 mm | 2.62 × 1.98 mm |
| Pixel Format | 1:1 | 1:1 | 1:1 |
